Flexible Timeline - JavaScript Scheduler

Timeline Scale

The JavaScript Scheduler component's timeline is very flexible, and it supports a range of slot sizes, from minutes to years. It offers multiple built-in scale units, and you also have the option to build the timeline manually by specifying individual cells.

The timeline can be non-linear (using different slot durations), and non-continuous (allowing you to skip selected time slots, such as non-business hours or days).

Read more about the scheduler scale [doc.daypilot.org].

Hours

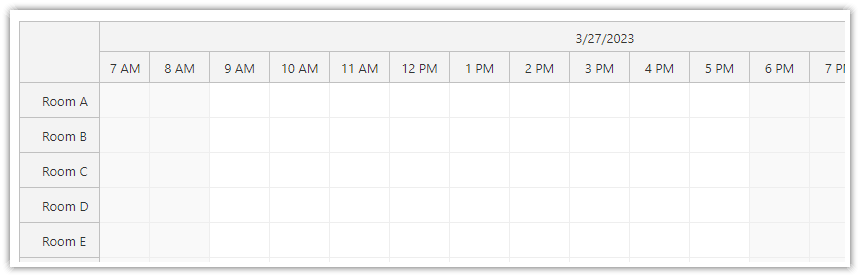

JavaScript Scheduler Timeline Hours Scale

The following Scheduler configuration sets the timeline slot size to one hour:

{
  scale: "Hour",
}

Days

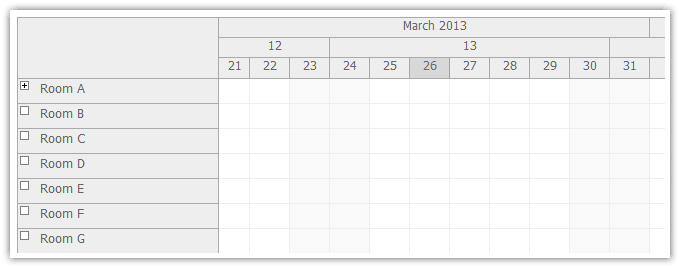

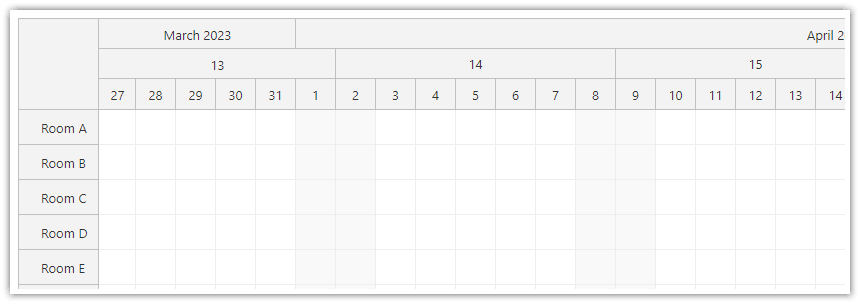

JavaScript Scheduler Timeline Days Scale

In the following example, the Scheduler is configured to display slots each representing one day:

{
  scale: "Day",
}

Weeks

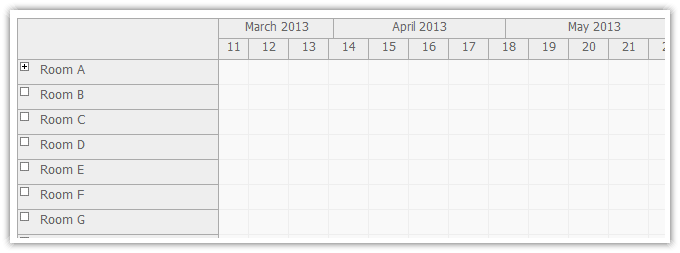

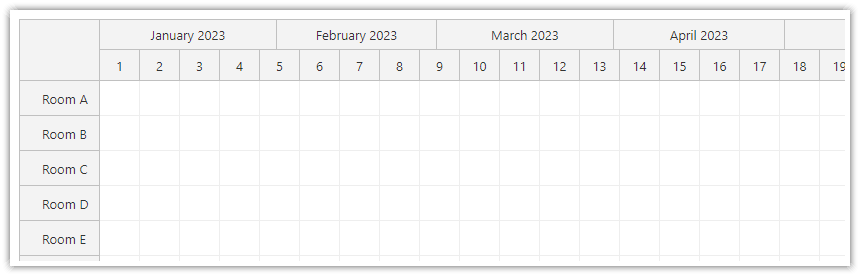

JavaScript Scheduler Timeline Weeks Scale

This Scheduler timeline uses one week as the basic time unit:

{
  scale: "Week",
}

Months

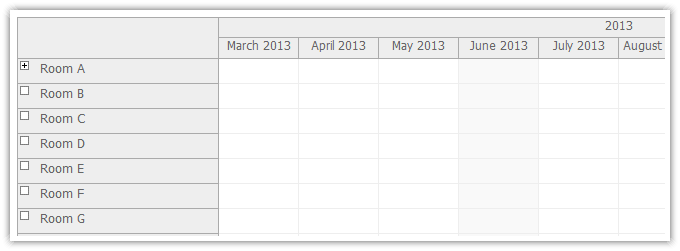

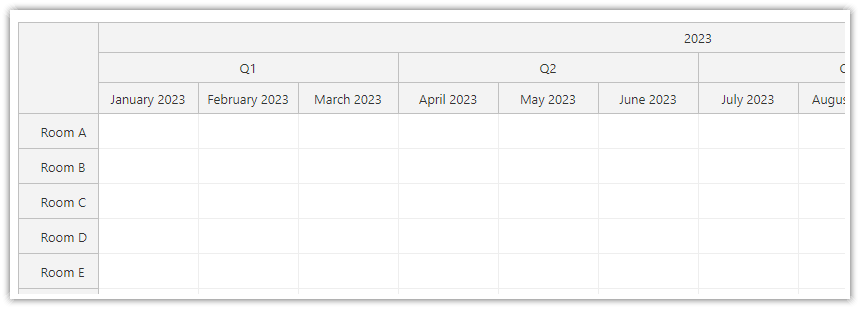

JavaScript Scheduler Timeline Months Scale

This timeline a uses slot size of one month:

{
  scale: "Month",
}

Years

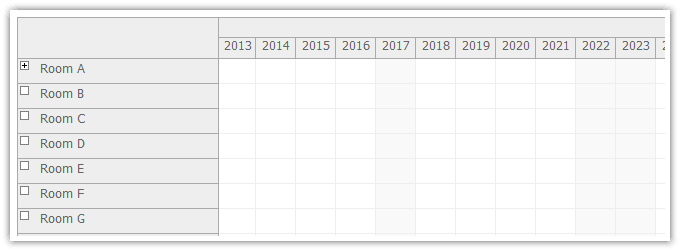

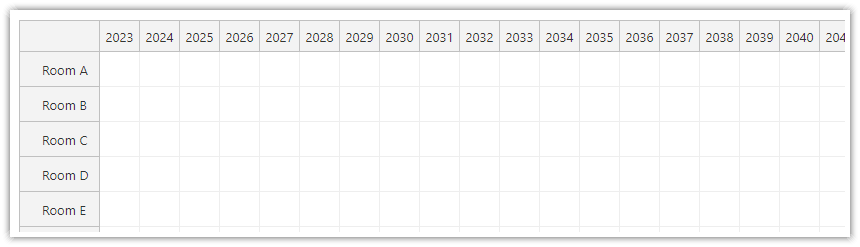

JavaScript Scheduler Timeline Years Scale

The longest built-in slot duration is one year:

{
  scale: "Year",
}

Custom number of minutes

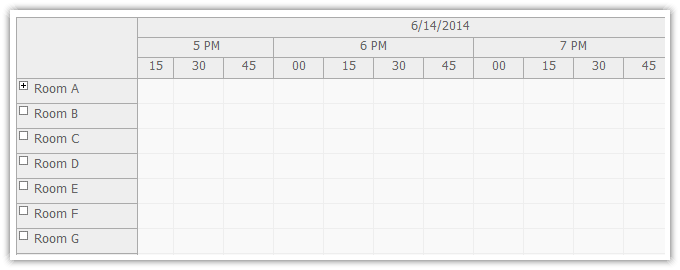

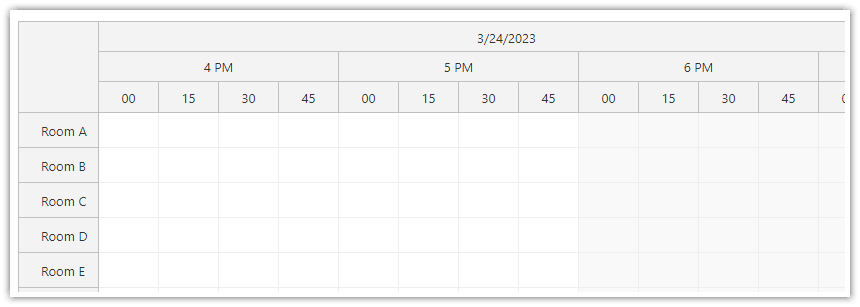

JavaScript Scheduler 15 Minute Time Slots

To use a timeline with slot sizes smaller than one hour, or to generate a non-standard slot size, you can define the slot size by specifying a custom number of minutes.

This example configures the Scheduler to use 15-minute slots:

{
  scale: "CellDuration",
  cellDuration: 15,
}

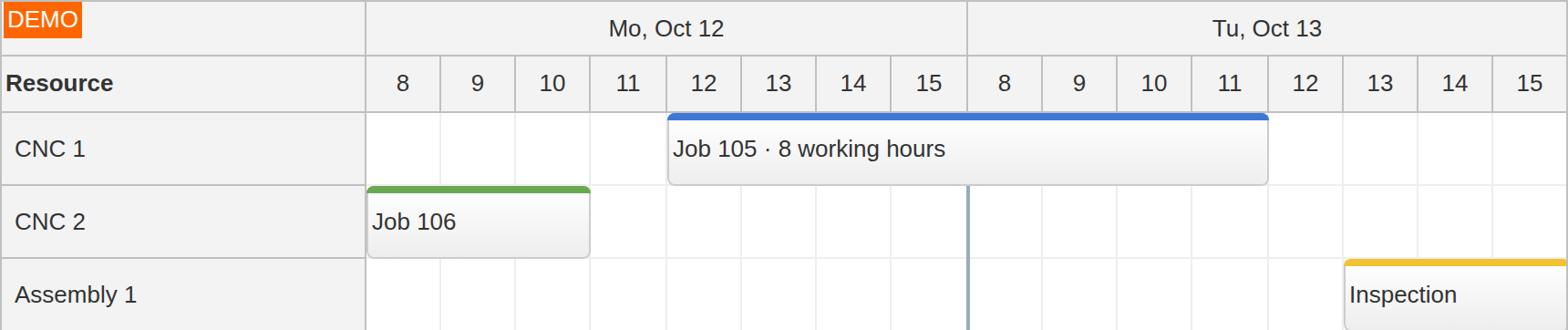

Non-Continuous Timeline

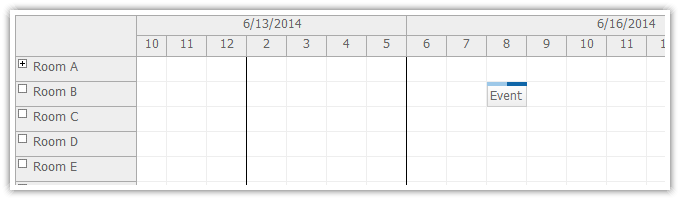

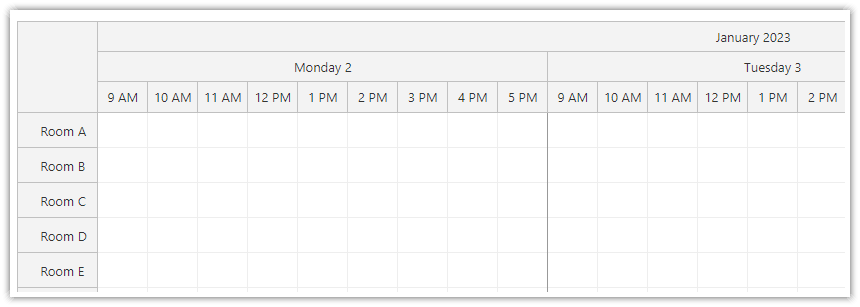

JavaScript Scheduler Non Continuous Timeline

You can hide non-business hours and days (e.g. weekends) from the timeline.

{
  showNonBusiness: false,
  businessBeginsHour: 6,
  businessEndsHour: 18,
}

You can customize the timeline further by hiding custom time cells using the onIncludeTimeCell event handler:

{
  // ...
  onIncludeTimeCell: (args) => {
    if (args.cell.start.getHours() === 13) { // lunch break
      args.cell.visible = false;
    }
  },
}

Read more about hiding non-business hours [doc.daypilot.org].

Non-Linear Timeline

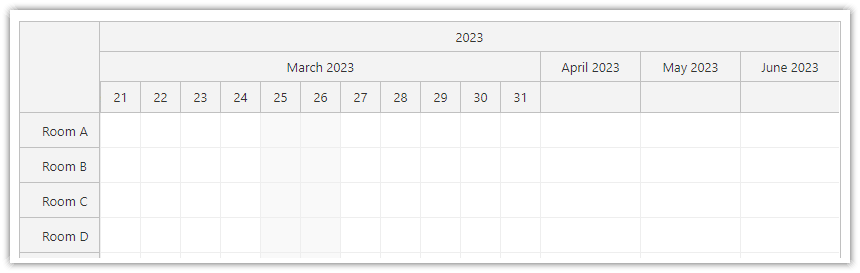

JavaScript Scheduler Timeline Non Linear

The timeline doesn’t have to be linear, allowing for flexibility in display options. For instance, days of the current month can be displayed using a one-day-per-cell scale, while the following months can be displayed using a one-month-per-cell scale.

Read more about using a custom timeline [doc.daypilot.org].

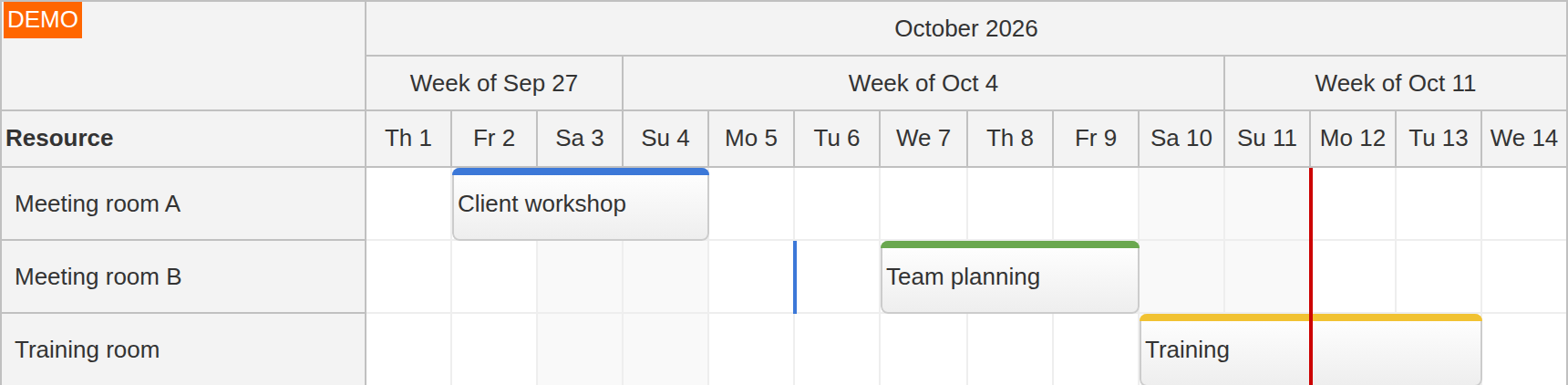

Time Header Rows

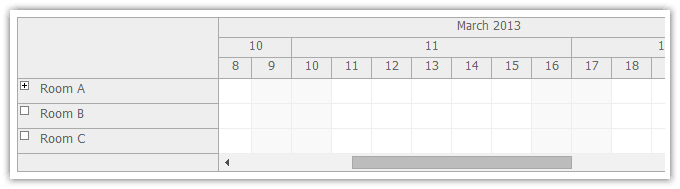

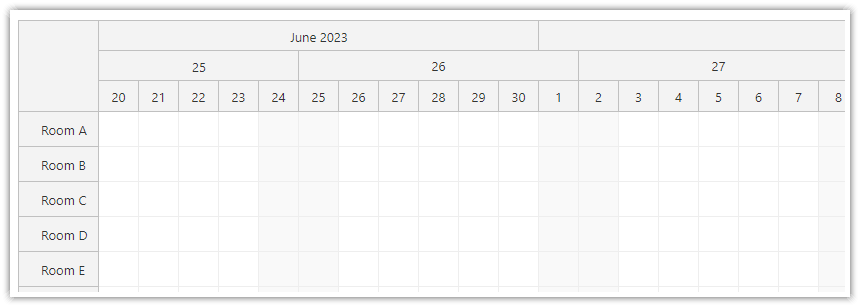

JavaScript Scheduler Time Header Rows

You can configure the Scheduler time headers by specifying the header rows, their scale units (day, week, month, etc.), and date/time format.

{
  timeHeaders = [
    {groupBy: 'Month'},
    {groupBy: 'Week'},
    {groupBy: 'Day', format: "d"}
  ],
}

Read more about time header rows and groups [doc.daypilot.org].

Time Header Cell Customization

You can customize the individual time header cells using the onBeforeTimeHeaderRender event handler. This allows you to use custom text/HTML in the time header, change the appearance using CSS, and add icons or action buttons.

{
  onBeforeTimeHeaderRender: (args) => {
    if (args.header.start.getDayOfWeek() === 6) {
      args.header.html = "Sat";
    }
  },
}

Read more about time header customization [doc.daypilot.org].
